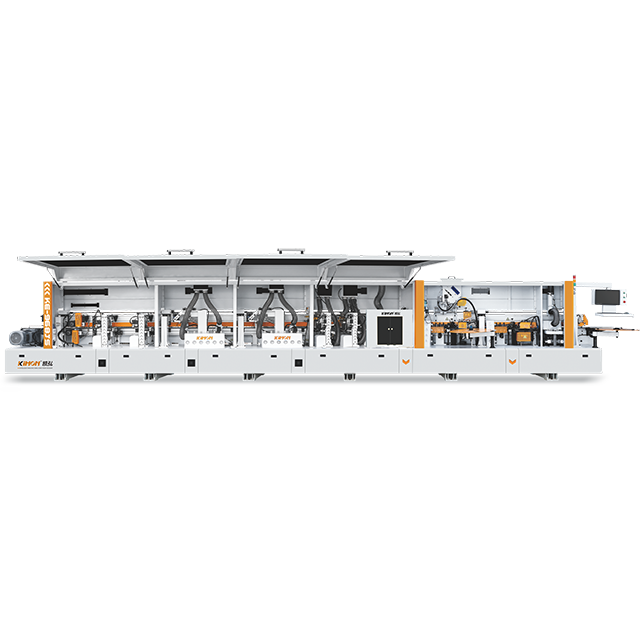

KE-968JS High-speed Cabinet Edge Banding Machine

5 0 Reviews

Price: $ 30300 / SET

Model:
KE-968JS
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Description

Application

FAQ

Pre-milling

After the pre-milling process, the edge burrs of the panel are smoothed by the pre-milling cutter to make the edge smooth and closely fit the edge band tape.

Glue pot1

The glue can quickly heats the glue, turns through the bearing, and the glue is evenly applied to the edge of the panel and then bonded to the edge band tape.

Glue pot2

The glue pot quickly heats up, it only takes a few minutes to melt the glue particles, and it can also operate normally in a low temperature environment. At the same time, it plays a good edge banding effect on PVC, high light door panels and other plates, and can achieve glue-free edge banding.

pressing

Six rollers tilt at different angles and make all-round contact with the edge of the panel to make it closely fit with the edge band tape.

End cutting

Double guide rails can be used to cut off excess edge band tape at both ends of the panel. The guide rail is designed to 45°, which can be cut more accurately. The baffle is added to prevent waste splashing, and the dust suction port is added above to suck out the waste.

Trimming

Through rough trimming and fine trimming panel on both sides of the excess edge band tape, so that it is parallel to the height of the panel, make the edge effect is more exquisite, feel better.

Corner rounding

New tracking structure, integrated welding base and enlarged cylinder can track the four corners of the panel more rounded arc.

Horizontal scraping

The top and bottom scraping are independently controlled, the sliding block feeding mode, can effectively avoid skipping in the scraping edge.

Flat scraping

On the top and bottom of the edge sealing belt after trimming, scrape out the α Angle circular edge, make the edge sealing effect is more exquisite.

KE-968JS High-speed Gabinet Edge Banding Machine

KE-968JS automatic edge banding machine, the highest speed up to 30m/min. The machine has complete functions, computer system control machine, simple and easy to operate, high-speed and efficient production, with fast end cutting, horizontal double trimming, four knife rounded corners, double horizontal scraping, double polishing and other processes, so that the edge sealing effect is more exquisite.

Technical Parameter

Model:

KE-968JS

Total power

30kw

Overall size

11000*1100*1750mm

Feeding speed

22-30m/min

Tape thickness

0.4-3mm

Panel thickness

9-60mm

Panel length

≥120mm

Panel width

≥45mm

Working pressure

≥0.7Mpa

Vacuum port

Φ100mm*6

Solution Technology

Main functions: Separating agent →Pre-milling →Sol R1 →Gluing R1 →Sol R2 →Gluing R2 →Double rails end cutting→Rough trimming→Fine trimming→Corner rounding 1→Corner rounding 2 →Scarping 1→Scarping 2→Flat scraping→Cleaning→Buffing 1→Buffing 2.

Applicable Industry

KE-968JS high-speed cabinet edge sealing machine has the characteristics of stable work, reliable performance, cost-effective, automation, high efficiency, high precision, beautiful appearance, especially suitable for cabinet, wardrobe, bookcase and other panel furniture manufacturers.

Our Advantages

1. Heavy-duty steel structure integrated rail.

2. heavy-duty aluminum pressure beam, Independent lifting system, simple and convenient.

3. Special polishing structure, the motor angle can be adjusted universally, so that the edge grinding and polishing of PVC/acrylic/ABS/veneer can achieve the best effect.

4. Double tracking copying chamfer, double horizontal scraping, double polishing standard, the machine feed speed can reach 22-30m/min, high production efficiency.

5. Multi-function edge banding machines, saving time and labor cost.

Applicable

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

1.What is the positioning of KE-968JS?

High-end full automatic linear edge banding machine.
2.Does this edge banding machine has a touch screen?

Yes,main function:Start-stop equipment,function choose,parameter setting,warning prompt and other functions.Simple touch design, simple training can start to operate.
3.KE-968JS Application range?

KE-968JS automatic edge sealing machine is suitable for high light board, aluminum honeycomb board, PTP, medium density fiberboard, woodworking board, solid wood, particle board, polymer door board, plywood and other board edge sealing processing, its edge sealing effect is delicate, smooth, feel good, and the sealing line is straight and smooth.
