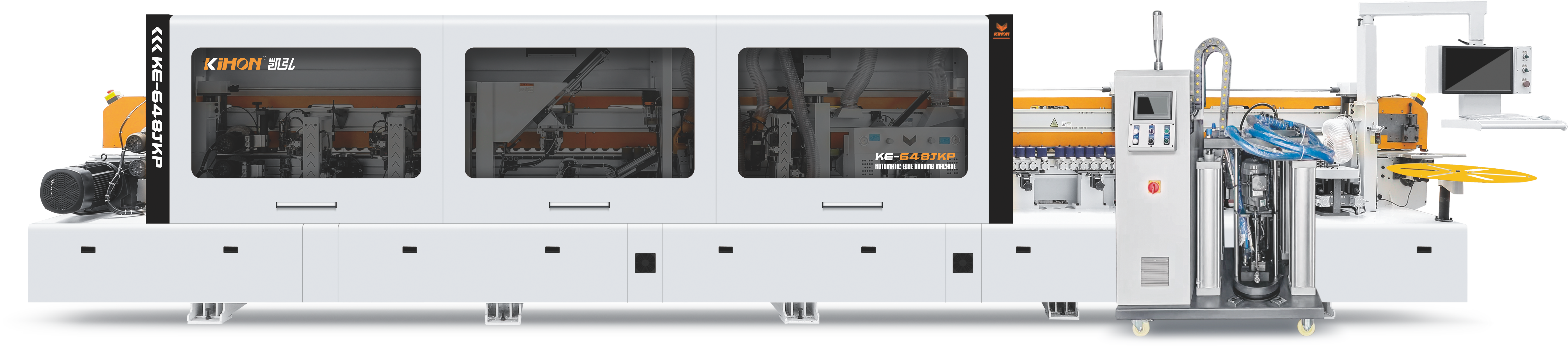

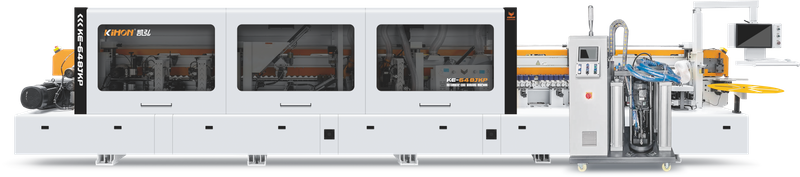

KE-648JKP Aluminum Honeycomb Special Edge Banding Machine

5 0 Reviews

Price: $ 26700 / SET

Model:
KE-648JKP
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Pre-milling

The edge of the plate is cut and trimmed to make the edge of the plate more smooth and flat, without burrs. Make the edge band fit more closely with the plate, and the glue line is smaller after the edge banding.

Glue pot 1

Standard PUR single color glue pot without cleaning, to reduce cleaning glue pot, waste glue and other problems. The adhesive contact surface of the aluminum plate is small, while the PUR glue is strong. tightly without gaps.

Pressing

Clamping design 3 groups of 6 rounds of clamping, a total of 18 pressing wheels, multi-point tight clamping of aluminum plate, so that the sealing strip plate viscosity is higher.

End cutting

After the edge sealing, the front and back ends of the plate are quickly cut, and the 45-degree end cutting design of the double rail is more accurate, more efficient, and also reduces the collision rate of the plate.

Trimming

Through rough trimming and fine trimming panel on both sides of the excess edge banding tape, so that it is parallel to the height of the panel, make the edge effect is more exquisite, feel better.

Corner rounding

The unique design of tracking chamfer, straight up and straight down, does not give the plate Angle pressure, avoid Angle deformation.

Scraping

On the top and bottom of the edge banding belt after trimming, scrape out the α Angle circular edge, make the edge banding effect is more exquisite.

Horizontal scraping

The top and bottom scraping are independently controlled, the sliding block feeding mode, can effectively avoid skipping in the scraping edge.

Buffing
The board after banding the edge is polished to make the upper and lower sides of the edgebanding panel more smooth and beautiful.

Description

KE-648JKP Aluminum Honeycomb Special Edge Banding Machine

KE-648JKP aluminum honeycomb special edge banding machine, up to 26m/min. This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, standard PUR no-cleaning monochrome glue pot, high-speed double finishing tracking copy double scraping double buffing, edge banding effect is more good, suitable for honeycomb aluminum furniture high-end mass customized production. With high-quality materials and brand configuration, it can adapt to high and low temperature climate and other harsh environments for production and operation, with stable production, less maintenance, durability and other characteristics.

Technical Parameter

Model:	KE-528JS
Total power	32.5kw
Overall size	950011001750mm
Feeding speed	18-26m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	≥120mm
Panel width	≥80m
Working pressure	≥0.7Mpa

Solution Technology

Main functions: Separating agent → Pre-milling → Cluing→ Pressing 1 → Pressing 2 → Pressing 3 → Double rails end cutting → Rough trimming → Fine trimming → Trace trimming → Scraping → Flat scraping → Buffing 1 → Buffing 2.

Applicable Industry

KE-648JKP aluminum honeycomb special edge banding machine runs stable, reliable and durable, moderate price, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers.It is characterized by automation, high efficiency, high precision and beautiful, and has been widely used in china panel furniture manufacturers.

Our Advantages

1. It is suitable for the high-end mass customized production of honeycomb aluminum furniture, and is a special edge banding machine for aluminum honeycomb..

2. The machine is easy to operate, the computer system is simple touch design, simple training can be started to operate.

3. Adapt to harsh environment production, durable

4. With automation, high efficiency, high precision, beautiful and other characteristics, has been widely used in China panel furniture manufacturers.

Application

Applicable

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

FAQ

1.What is the positioning of KE-648JKP?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
2.What is the function of KE-648JKP?

Main functions: Separating agent → Pre-milling → Cluing→ Pressing 1 → Pressing 2 → Pressing 3 → Double rails end cutting → Rough trimming → Fine trimming → Trace trimming → Scraping → Flat scraping → Buffing 1 → Buffing 2.
3.KE-648JKP Edge banding machine Scope of application？

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.
