KE-468F
KIHON
Availability: | |
---|---|
Quantity: | |

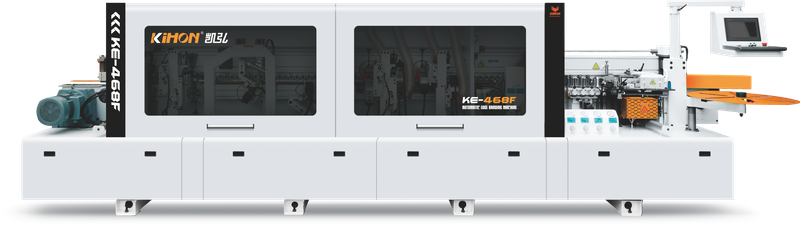

KE-468F Single Clue Pot Cabinet Edge Banding Machine
KE-468F automatic edge banding machine, maximum speed up to 22m/min. The model has complete functions, stable and powerful system, intelligent operation control, high-speed and efficient production, trace trimming, so that the edge effect is better, more beautiful, suitable for high-end mass customization production of panel furniture.
Technical Parameter
Model: | KE-468F |
Total power | 22.5kw |
Overall size | 6800*900*1600mm |
Feeding speed | 18-22m/min |
Tape thickness | 0.4-3mm |
Panel thickness | 9-60mm |
Panel length | ≥120mm |
Panel width | ≥50mm |
Working pressure | ≥0.7Mpa |
Solution Technology
Main function:Sol→Gluing→End cutting→Rough trimming→Fine trimming→Trace trimming→Scraping→Cleaning→Buffing.
Applicable Industry
Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.
Our Advantages
1. The steel sheet of the base of the fuselage is cut by laser, and the fuselage formed by one-time welding is firm and not deformed, which increases the stability of the whole machine and ensures that each processing group can work precisely.
2. It adopts devices such as sound insulation, dust collection port, and anti-overload.
3. All the parts are made with fine processing of high-precision CNC machining center, and this ensures the stable and high efficiency operation.
4. The edge banding effect of the edge banding machine is exquisite, smooth, feel good, and the edge line is straight and smooth.
Applicable
Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.
![]() | ![]() |
