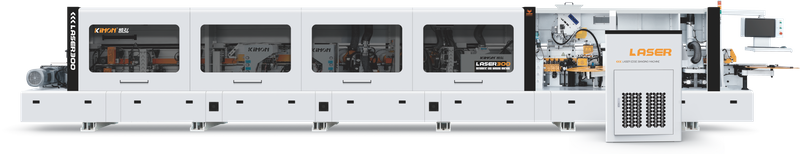

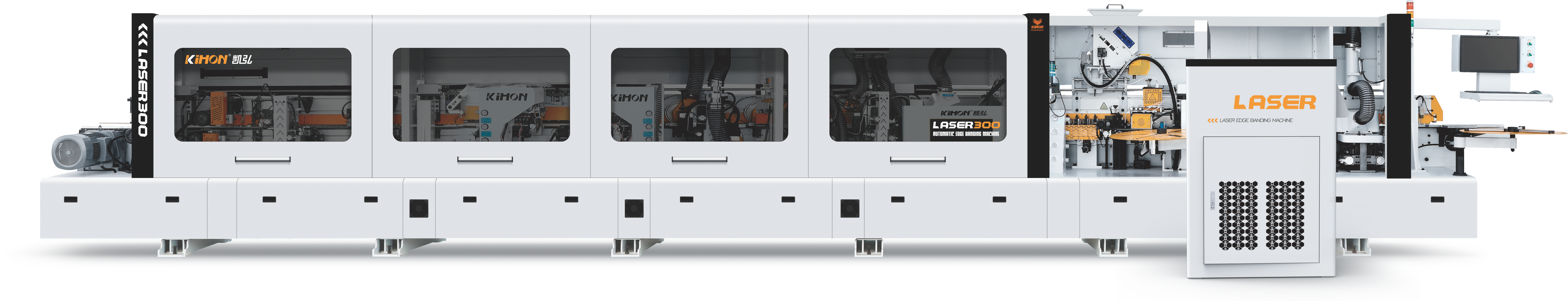

LASER 300 Intelligent LASER Edge Banding Machine

5 0 Reviews

Price: $ 38800 / SET

Model:
LASER 300
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Pre-milling

The edge of the panel is cut and trimmed, make the edge of the panel is more smooth and flat, without burr. Make the edge banding tape and panel fit more tightly, after the edge of the glue line is smaller.

Laser transmitter

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting
Quality and efficiency, laser seal completely replace PUR, and EVA glue edge banding, reduce the cost of glue, do not have to wait for the glue to warm, on the go.

Water cooler

The internal structure adopts the photoelectric module separation design, and the operation performance is more stable. The optical module, electrical module, control unit, and driver unit can be replaced, upgraded, and maintained directly on the client.

Glue Pot 2

Glue pot fast melting glue, rapid heating, good edge banding effect on PVC, high light door panel and other plates. It can seal the edge without glue.

Pressing

Multi-point contact and tight paste, make the edge banding tape and the panel more strongly fit.

End cutting

The edge banding tape at both ends of the panel after the edge banding are removed. The single guide rail is designed at 45°, which is more accurate and efficient.Add suction port, and baffle panel, can effectively remove waste.

Trimming

Through rough trimming and fine trimming panel on both sides of the excess edge banding tape, so that it is parallel to the height of the panel, make the edge banding effect is more exquisite, feel better.

Double tracking

The new tracking structure, the integrated welded base and the enlarged cylinder can make the arc of the four corners of the plate more full and rounded.

Horizontal double scraping

Each scraping edge is independently controlled, and the sliding block feed mode can effectively avoid skipping on the scraping edge.

Description

Automatic Laser Edge Banding Machine LASER300

LASER300 automatic laser edge banding machine, up to 26m/min. This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, fast speed end cutting, horizontal double trimming, four knife tracking, double horizontal scraping, double buffing, so that the edge banding effect is better.

Technical Parameter

Model:	LASER300
Narrowest plate open trackin	120*45m
narrowest plate is premilled	80mm
Total power	32KW
Overall size	1100011001750mm
Feeding speed	15-22-28m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Sheet material width narrowest	≥45mm
Working pressur	0.7Mpa
Suction openin	Φ100

Solution Technology

Separating agent → Pre-milling → Laser transmitter → Pluing press R1 → Melting glue R2 → Gluing R2 → Split quick head→ Horizontal trimming 1 → Horizontal finishing 2 → Double tracking 1 → Double tracking 2 → Horizontal scraping 1 → Horizontal scraping 2 → Cleaning → Buffing 1 → Buffing 2.

Applicable Industry

LASER300 automatic laser edge banding machine runs stable, reliable and durable, moderate price, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers.It is characterized by automation, high efficiency, high precision and beautiful, and has been widely used in china panel furniture manufacturers.

Our Advantages

1. The human-computer interaction is simpler, the large screen has a large field of view, the interface is clearer, and it is easy to operate and use.

2. The edge band used is pre-coated with glue and activated by laser, so there is no need to replace the glue and save the time of sol.

3. The strict and elaborate assembly process to ensure each equipment gets to its perfect performance.

4. The edge banding effect of the edge banding machine is exquisite, smooth, feel good, and the edge line is straight and smooth.

Application

Applicable

The laser edge band comes with pre-coated glue, the laser temperature is as high as 400-500°C, the edge band is bonded to achieve zero release, no glue lines, no gaps, moisture-proof, high temperature resistance, strong force, glue-free, and high efficiency.

FAQ

FAQ

1.What is the positioning ofLASER300?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
2.What are the features of the LASER300?

The laser edge banding machine mainly consists of a main linear edge banding machine, a laser emitter, a laser head, an industrial water cooler and a control system to form a laser edge banding machine. Achieve glue-free lines and seal edges. Compared with traditional edge sealing, laser edge sealing solves the problem of cleaning the glue pot, does not need to wait for heating time, reduces the cost of glue and reduces the use process. The laser is available on demand.
