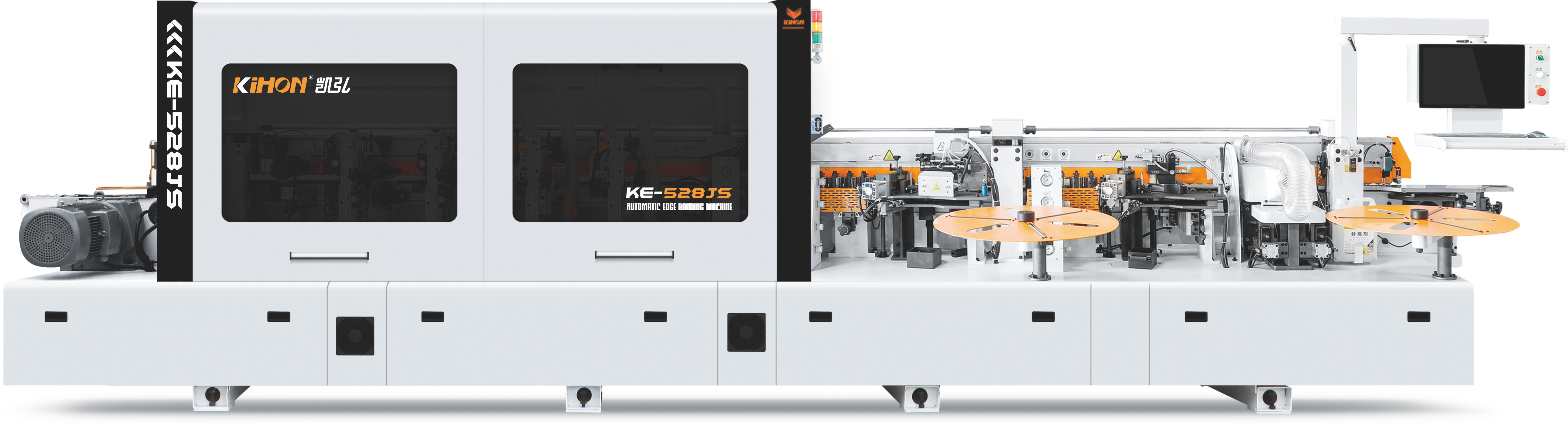

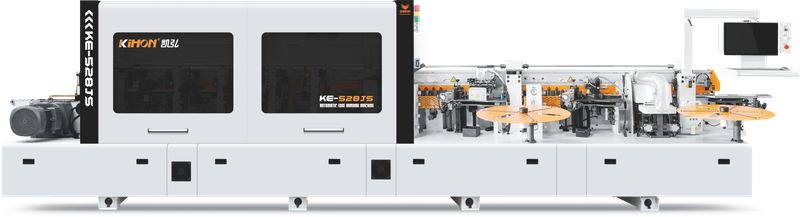

KE-528JS Heavy-duty Door Panel Edge Banding Machine

5 0 Reviews

Price: $ 23300 / SET

Model:
KE-528JS
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Pre-milling

Two pre-milling cutters polish the edge of the panel to make the edge of the panel smooth and burr free. The purpose is to make the edge banding tape fit the edge of the panel more closely and the adhesive effect is better.

Glue pot 1

Fast heating, selected glued bearings, which can effectively and evenly glue the panels,make the edge banding tape can be bonded tightly without gaps.

Glue pot 2

Fast heating melting glue, improve work efficiency, reduce time cost, PVC, high light door panel and other plates have a good edge banding effect. Glue-free edge sealing can be achieved.

pressing

The six rollers are in close contact with the edge of the panel, and the fit is tight, so that the edge banding tape fits the panel more firmly.

End cutting

The single guide rail can remove the excess edge banding tape at the left and right ends of the panel. The waste material can be removed through the upper suction port to avoid flapping and scratching workers

Trimming
Trim the excess edge banding tape on both sides of the panel through two processes of rough repair and fine repair, so that the edge banding tape is parallel to the height of the wood panel, so that the edge effect of the board is more exquisite and the feel is better.

Scraping

After trimming the edge on the top and bottom of the edge band tape, the upper and lower two scrapers can scrape out the α Angle round edge sealing, making the edge sealing effect more exquisite..

Horizontal scraping
On the top and bottom of the edge sealing belt after trimming, scrape out the α Angle circular edge, make the edge sealing effect is more exquisite.

Buffing

Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

Description

KE-528JS-2H Heavy-duty Door Cover Edge Banding Machine

KE-528JS full-automatic edge banding machine,the highest speed can be reached 24m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production.More benign component design equipment, can adapt to 80mm narrow panel edge banding.Suitable for panel furniture high-end mass customization production.With high quality materials and brand configuration,it can adapt to high and low temperature climate and other harsh environment for production operation, with production stability, maintenance, durability and other characteristics.

Technical Parameter

Model:	KE-528JS
Total power	28kw
Overall size	750011001750mm
Feeding speed	20-26m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	≥120mm
Panel width	≥80m
Working pressure	≥0.7Mpa

Solution Technology

Main functions:Pre-milling→Gluing R1→Gluing R2→Single rail end cutting→Rough trimming→Fine trimming→Scraping→Flat scraping→Cleaning→Buffing1→Buffing2.

Applicable Industry

KE-528JS automatic edge sealing machine has full functions, heavy body, stable operation, cost-effective, especially suitable for heavy wooden door edge sealing manufacturers. It has the characteristics of automation, high efficiency, high precision and beautiful appearance.

Our Advantages

1. Heavy frame, stable operation

2. Especially suitable for heavy wooden door edge sealing

3. Sound insulation, dust collection, anti-overload design to ensure staff safety.

4. Using no-clean two-color glue pot, the top glue pot melts fast, heating up fast, and has a good edge sealing effect on PVC, high light door panels and other plates. Glue-free edge sealing can be achieved.

5. Strict and meticulous assembly process, strict control of each process.

6. The edge sealing effect of the edge sealing machine is exquisite, smooth, good feel, and the edge line is straight and smooth.

Application

Applicable

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

FAQ

1.Why choose model KE-528JS?

Multi-function edge banding machine – Double glue pot (EVA glue) ,double tape areas with double press wheel , Efficient and stable, perfect edge banding.
2.Can I add cleaning function to this machine?

This machine has the cleaning device as the standard configuration.
3.What is the difference between KE-528JS-2H and KE-528JS?

KE-528JS-2H model edge bander has two more horizontal slotting functions,he edge banding effect of the two machines is the same, each has its own advantages, If you don’t know how to choose, please contact us, our professionals will recommend the most suitable machine for you.
