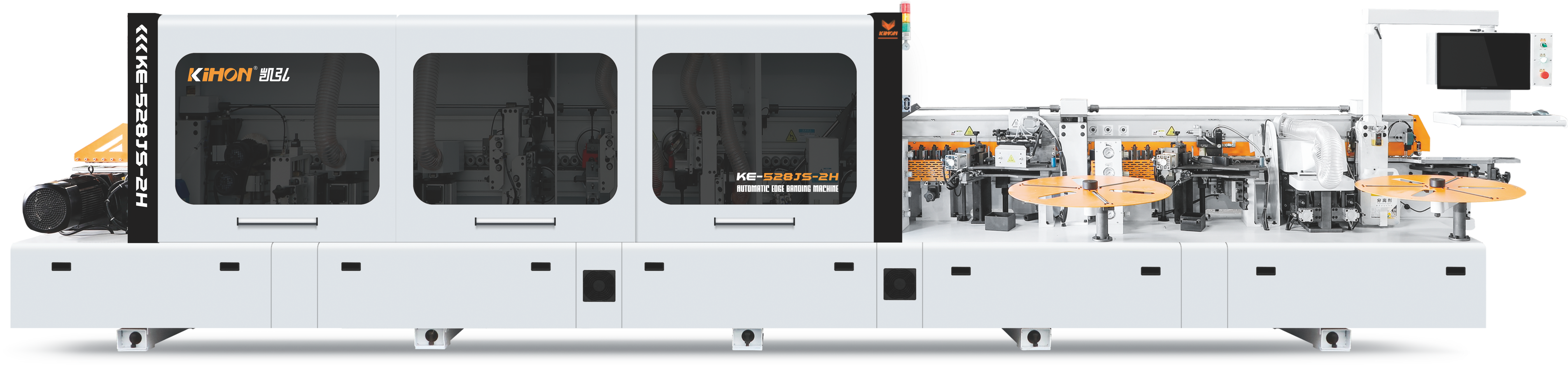

KE-528JS-2H Heavy-duty Door Cover Edge Banding Machine

5 0 Reviews

Price: $ 27000 / SET

Model:
KE-528-2H
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Pre-milling

The edge of the panel is trimmed by a Pre-milling cutter to make the edges of the panel smoother and less burring. Objective To make the edge banding tape fit the panel more tightly and without gap, and the glue line at the back is smaller.

Glue pot 1

Fast heating, selected glued bearings, which can effectively and evenly glue the panels,make the edge banding tape can be bonded tightly without gaps.

Glue pot 2

The glue pot melts fast, can heat up quickly in a low temperature environment, save the waiting time of the machine, and the glue can be stored inside for a long time, easy to use, and has a good edge banding effect on PVC, high light door panels and other plates. It can seal the edge without glue line.

pressing

The roller is tightly fitted with the wooden board in multi-point contact, which can fully squeeze the wooden board and the side banding tape, so that the banding tape and the panel are more firmly fitted.

End cutting

After the edge banding, the front and back ends of the plate are quickly cut off, and the double guide rail 45-degree head design is more accurate, more efficient, and also reduces the rate of cutting the plate.

Trimming

The panel completed by edge banding is cut out the excess edge banding tape on both sides of the panel through the two processes of rough trimming and fine trimming, so that it is parallel to the height of the panel, so that the edge of the panel is more exquisite and the touch feel is better.

Horizontal slotting

The sharp saw rotates at high speed, which can accurately slot the edge board horizontally without destroying the edge banding effect.

Flat scraping

Each scraping edge is independently controlled, the sliding block feed mode can effectively avoid skipping on the scraping edge.

Horizontal scraping

The horizontal scraping process trims the edge at the top and bottom of the panel, scraping out a round edge with an α Angle, making the panel edge banding effect look more exquisite.

Description

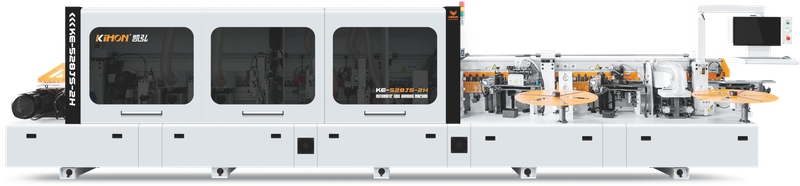

KE-528JS-2H Heavy-duty Door Cover Edge Banding Machine

KE-528JS-2H full-automatic edge banding machine,the highest speed can be reached 24m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production.More benign component design equipment, can adapt to 80mm narrow panel edge banding.Suitable for panel furniture high-end mass customization production.With high quality materials and brand configuration,it can adapt to high and low temperature climate and other harsh environment for production operation, with production stability, maintenance, durability and other characteristics.

Technical Parameter

Model:	KE-528JS-2H
Total power	39kw
Overall size	830011001750mm
Feeding speed	18-24m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	≥120mm
Panel width	≥80m
Working pressure	≥0.7Mpa

Solution Technology

Main functions:Pre-milling→Gluing R1→Gluing R2→Single rail end cutting→Rough trimming→Fine trimming→Horizontal slotting1→Horizontal slotting 2→Scraping→Flat Scraping→Cleaning→Buffing1→Buffing2.

Applicable Industry

KE-528JS-2H automatic edge banding machine, with stable work, reliable performance, high cost performance characteristics, especially suitable for small and medium-sized home enterprises, cabinets, wardrobes and other panel furniture manufacturers. Because of its high degree of automation, high efficiency, high precision, beautiful and generous, it has been widely used in China's panel furniture manufacturers.

Our Advantages

1. Easy operation and maintenance, no special training required.

2. The edge banding effect of the edge banding machine is exquisite, smooth, good feel, and the edge banding line is straight and smooth.

3. Edge banding machine equipment stable operation, complete functions, moderate price, suitable for different edge banding needs of panel furniture manufacturers.

4. Contains double horizontal slotting function to achieve multi-functional edge banding requirements.

5. The edge banding machine has the characteristics of automation, high efficiency, high precision, beautiful, etc., and has been widely used in china panel furniture manufacturers.

Application

Applicable

Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

FAQ

1.What is the positioning of KE-528JS-2H?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
2.What is the function of KE-528JS-2H?

Main functions:Pre-milling→Gluing R1→Gluing R2→Single rail end cutting→Rough trimming→Fine trimming→Horizontal slotting1→Horizontal slotting 2→Scraping→Flat Scraping→Cleaning→Buffing1→Buffing2.
3.What is the difference between KE-528JS-2H and KE-528JS?

KE-528JS-2H model edge banding machine has two more horizontal slotting functions,but edge banding effect of the two machines is the same, each has its own advantages, If you don’t know how to choose, please contact us, our professionals will recommend the most suitable machine for you.
