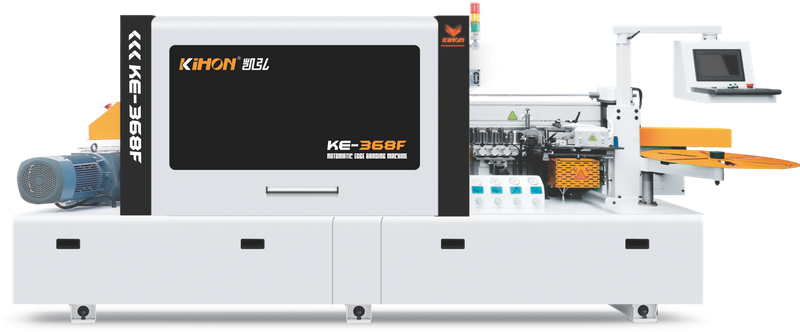

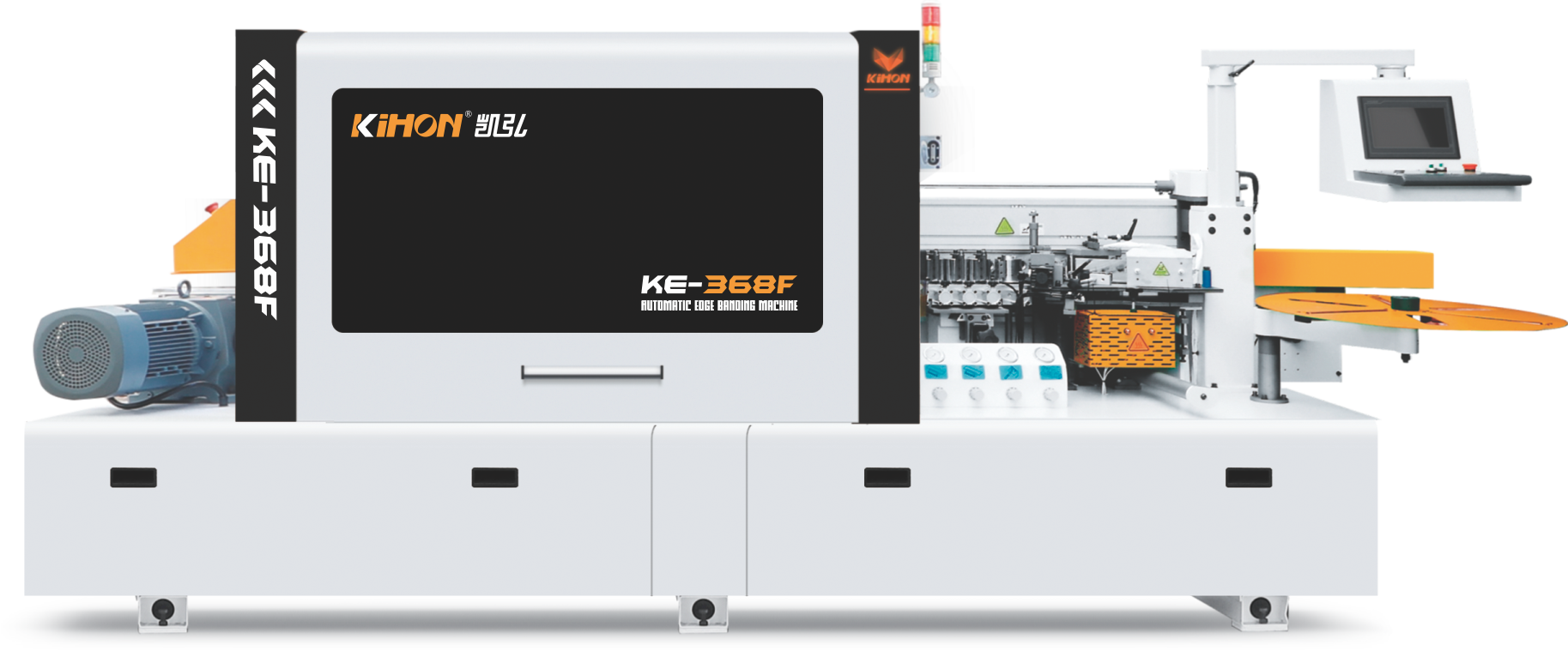

KE-368F Cost-effective Automatic Edge Banding Machine
KE-368F automatic edge banding machine with a maximum speed of 22m/min. The model has complete functions, stable and powerful system, intelligent operation control, high-speed and efficient production. A more benign component design device that can accommodate 40mm narrow plate edging. With high-quality materials and brand configuration, it can adapt to the harsh environment such as high and low temperature climate for production and operation, and has the characteristics of stable production, maintenance and durability.
Technical Parameter
Model: | KN-368F |
Total power | 22.5kw |
Overall size | 4680*900*1600mm |
Feeding speed | 18-22m/min |
Tape thickness | 0.4-3mm |
Panel thickness | 9-60mm |
Panel length | ≥120mm |
| Panel width | ≥40mm |
Working pressure | ≥0.7Mpa |
Solution Technology
Main functions:Sol→Gluing→End cutting→Rough trimming→Fine trimming→Scraping→Cleaning→Buffing.
Applicable Industry
The equipment runs stable, reliable and durable, moderate price, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers.
Our Advantages
1. Automatic edge banding. Modular design, customzied on demand, easy to operate.
2. High degree of automation. Through the pre-set software mode, fully automated production is realized.
3. High input-output ratio. This edge banding machine can save labor costs, improve production efficiency, and achieve intelligent and efficient production.
4. Complete functions. It can realize gluing, edge banding, end cutting, rough trimming, fine trimming, scraping, and polishing functions.
5. Wide range of applications. This automatic edge banding machine is widely used in edge banding of furniture processing, cabinet processing, interior decoration board, etc.
Applicable
Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.
 |  |
