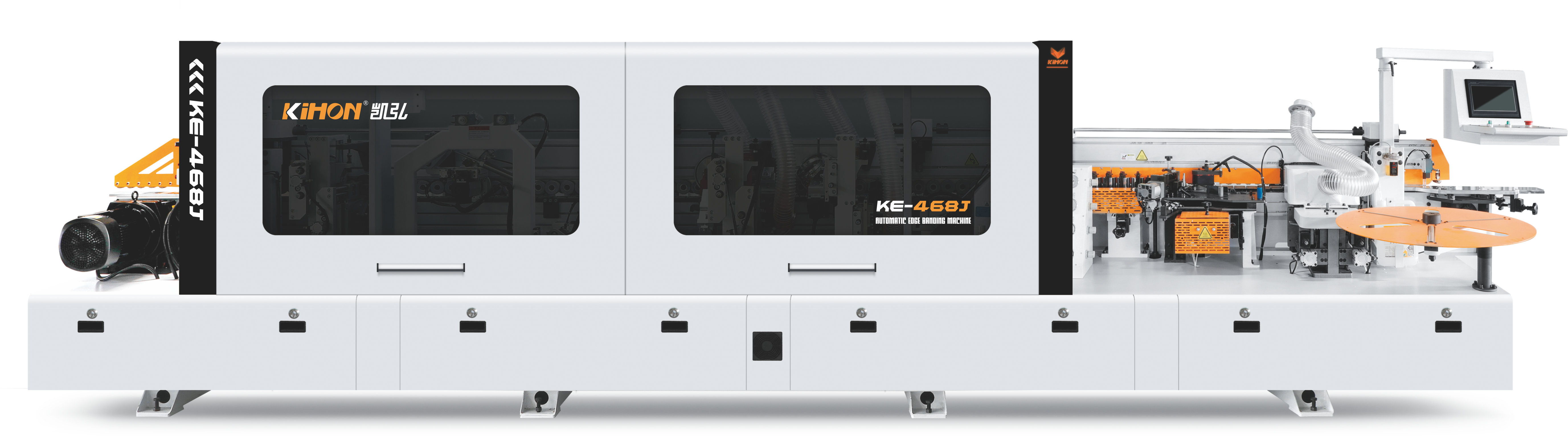

KE-468J Full-Automatic Edge Banding Machine

5 0 Reviews

Price: $ 14900 / SET

Model:
KE-468J
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Pre-milling

The pre-milling unit grinds edges of panels at the beginning, which helps to firmly stick the edge banding tape to the panel in the later process.

Gluing

Selected coated bearing, can effectively and evenly coated the panel, make the edge banding tape without gap fit more tightly.

Pressing

Multi-point contact and tight paste, make the edge banding tape and the panel more strongly fit.

End cutting

Through the precise linear guide rail movement, the automatic tracking of the profile and the fast cutting structure of the high-frequency high-speed motor are used to trim the protruding edge banding tape at the front end of the plate and the protruding edge banding tape at the rear end of the plate.Make it flush with the front and back ends of the wood panel to ensure that the cut surface is flat and smooth.

Trimming

Double trimming discs automatically track panels to remove the excessive glue and tape, achieving more soomth appearance of panels, which certainly pleases the end-market.

Trace trimming

The edge of the four corners of the panel chamfering round, make the edge after the four corners more delicate and smooth.

Scraping

On the top and bottom of the edge banding tape after trimming, scrape out the α Angle circular edge, make the edge banding effect is more exquisite.

Cleaning

Clean the dirt on the top and bottom sides of the panel after the edge banding, make the panel can reduce the subsequent cleaning process.

Buffing

Through the two rotating cloth wheels, the processed panel is cleaned to make the end face of the edge banding more smooth and beautiful, and to keep the polishing wheel worn evenly.

Description

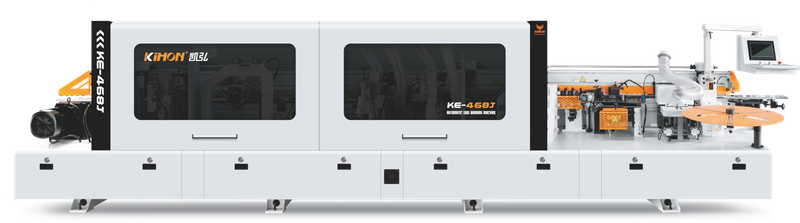

Full-Automatic Edge Banding Machine KE-468J

KE-468J full-automatic edge banding machine is 22m/min, the use of intuitive digital display operation panel, easy to operate, suitable for high-end mass customized production of panel furniture, with stable production, easy maintenance, durable and other characteristics. Edge banding materials include PVC, veneer, melamine, plastic and other materials.

Technical Parameter

Model:	KE-468J
Total power	25.5kw
Overall size	70009001600mm
Feeding speed	18-22m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	≥120mm
Panel width	≥50mm
Working pressure	≥0.7Mpa

Solution Technology

Main functions:Separating agent→Pre-milling→Sol→Gluing→End cutting→Rough trimming→Fine trimming→Trace trimming→Scraping→Cleaning→Buffing.

Applicable Industry

Edge banding machine equipment stable operation, multi-functional use, saving manpower and material resources, cost-effective, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers.

Our Advantages

1. KE-468J automatic edge banding machine has a basic complete process, and occupies a small area, widely loved by small and medium-sized panel furniture factories.

2. Equipped with a fully enclosed safety shield to ensure the safety of the operator and protect the environment.

3. Dense units with high-speed motors ensure the highest finishing quality of the machine.

4. Easy operation and maintenance, simple training can get started.

Application

Applicable

Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

FAQ

1.What is the positioning of KE-468J?

Cost-effective mid-end edge banding machine. The basic functions are complete to meet the needs of most furniture manufacturers.
2.What is the function of KE-468J?

Main functions:Separating agent→Pre-milling→Sol→Gluing→End cutting→Rough trimming→Fine trimming→Trace trimming→Scraping→Cleaning→Buffing.
