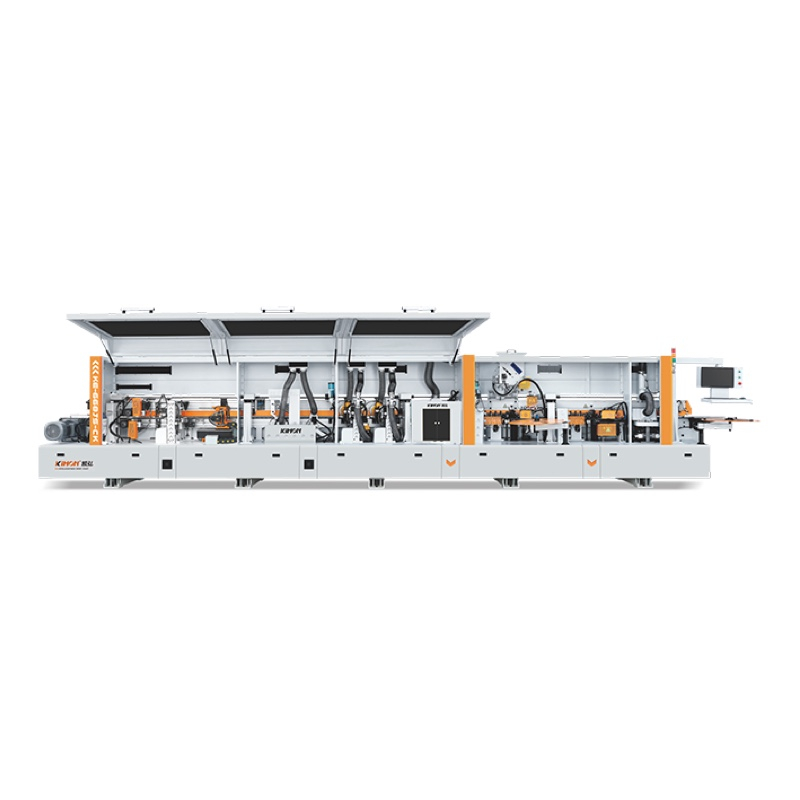

KE-668JS-CK Full-Automatic Edge Banding Machine

5 0 Reviews

Price: $ 28500 / SET

Model:
KE-668JS-CK
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Description

Application

FAQ

Pre-milling

Cutting, trimming, can make the edge of the board smooth, no burrs, can make the edge banding tape and the board more closely bonded, the glue line on the back is thinner.

Glue pot 1

Fast heating, selected glued bearings, which can effectively and evenly glue the panels,make the edge banding tape can be bonded tightly without gaps.

Glue pot2

The glue pot adopts high quality melting equipment, fast melting speed, fast heating, can seal PVC, high light door panel and other plates, can achieve glue-free edge banding.

Pressing

Multi-point contact and tight paste, make the edge banding tape and the panel more strongly fit.

End cutting

Cut off the edge banding tape at both ends of the panel behind the edge sealing. The single rail design is 45°, allowing for more accurate and efficient cutting of excess sideband. At the same time, in order to ensure the effective removal of waste, dust suction pipes and baffle panels are added near the dust suction port.

Trimming

By rough trimming and finishing the panel, the excess outstanding edge banding tape on both sides is scraped to make it parallel to the height of the panel, so that the edge effect is more exquisite and the feel is better.

Corner rounding

Trim the chamfer of the four corners of the panel to make the edge banding effect of the four corners more delicate and smooth.

Side hole drilling

Side drilling can be done at the same time of edge banding, and the work efficiency is higher.

Flat scraping

On the top and bottom of the edge banding tape after trimming, scrape out the α Angle circular edge, make the edge banding effect is more exquisite.

Horizontal Scraping

The upper and lower scraping are independently controlled, and the slider feeding mode can effectively avoid the jump of the scraping edge.Horizontal scraping.

Cleaning

After the board edge banding is completed, the cleaning process will spray cleaning agent to clean all the dirt on the upper and lower sides of the panel, so that the following cleaning steps can be eliminated.

Buffing

After the edge banding is completed, the panel needs to be polished to remove the residual glue on the surface, and the surface is polished smooth to make the board more smooth and beautiful.

Full-Automatic Edge Banding Machine KE-668JS-CK

KE-668JS-CK automatic edge banding machine, up to 24m/min. This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, double rail end cutting, horizontal double trimming,trace trimming, side hole machine, one machine two processes, so that production efficiency is more efficient.

Technical Parameter

Model:	KE-668JS-CK
narrow panel seal long sid	45mm, open corner rounding 45mm
narrow pane seal short side	45mm,open corner rounding 45mm
Total power	33kw
Overall size	950011001750mm
Feeding speed	22-28m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	Close pre-milling ≥45mm, open pre-mimlling ≥65mm
Panel width	≥45mm
Working pressure	0.7Mpa
Vacuum port	Φ100mm

Solution Technology

Main function:Separating agent→Pre-milling→Sol R1→Gluing R1→Sol R2→Gluing R2→End cutting→Rough trimming→Fine trimming→Trace trimming→Lateral pore→Scraping→Flat scraping→Buffing 1→Buffing 2.

Applicable Industry

KE-668JS-CK edge banding- lateral hole machine has the characteristics of stable performance, reliable performance and cost-effective, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers. Because of its high degree of automation, high efficiency, high precision, beautiful and generous, it has been widely used in China's panel furniture manufacturers.

Our Advantages

1. The fuselage base is welded by laser cutting once, which is not easy to deform, improving the stability of the machine and ensuring that each process can be accurate.

2. This edge banding machine can realize the functions of edge banding and drilling at the same time.

3. Sidetracking can be completed at the same time of edge banding, with high work efficiency, reducing complicated steps, saving labor and time costs.

Applicable

Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

1.What is the positioning of KE-688JS-CK?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
2.What is the function of KE-688JS-CK?

Main function:Separating agent→Pre-milling→Sol R1→Gluing R1→Sol R2→Gluing R2→End cutting→Rough trimming→Fine trimming→Trace trimming→Lateral pore→Scraping→Flat scraping→Buffing 1→Buffing 2.
3.The difference between KE-688JS-CK and KE-688JS

Ke-688js-ck model edge banding machine than KE-688JS model edge banding machine more than a set of side hole function, less a set of horizontal scraping
