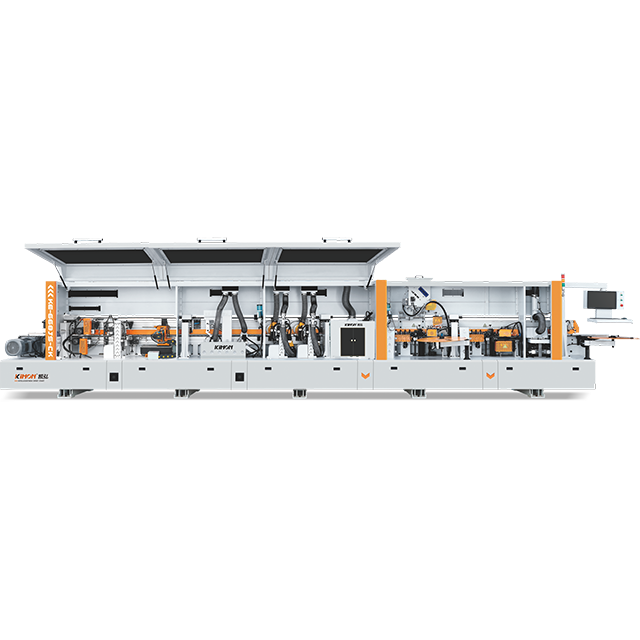

KE-668JS-CK Edge Banding Side Hole Integrated Machine

5 0 Reviews

Price: $ 28500 / SET

Model:
KE-668JS-CK
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Description

Application

FAQ

Pre-milling

The edge of the panel is cut and trimmed to make the edge of the panel more smooth and burrless, so that the side tape and the panel are more tightly fitted without gap under the action of glue, and the glue line behind is smaller.

Glue pot 1

The glue pot is heated quickly, and the adhesive bearing is selected to effectively spread the glue evenly on the plate and stick closely with the edge banding.

Glue pot 2

Glue pot melting fast, low temperature environment can also quickly heat up, no need to wait, PVC, high light door panel and other plates have a good edge banding effect.

pressing

Six rollers are tilted at different angles to fit the board in all directions and press tightly to make the edge banding tape fit the panel more firmly.

End cutting

The single guide rail design is 45 degrees, which can remove the edge banding at both ends of the back panel of the edge more accurately and efficiently.
The cut waste is sucked away by the suction port and the baffle panel above, which can effectively prevent the waste from flying and scratching the workers.

Trimming

The extra edge banding tape on the upper and lower sides of the panel is scraped off after rough trimming and fine trimming, so that it becomes parallel to the height of the panel, making the edge of the board more exquisite.

side hole drilling

Side drilling can be completed at the same time of edge banding, side holes and edge banding more efficient. the edge banding effect is more better.

Horizontal scraping

The upper and lower scrapers of the horizontal scraping process are independently controlled, and the board adopts the sliding block feeding mode, which can effectively avoid the jump of the scraper.

Flat scraping

On the top and bottom of the edge banding tape after trimming, scrape out the α Angle circular edge, make the edge banding effect is more exquisite.

KE-668JS-CK Edge Banding Side Hole Integrated Machine

KE-668JS-CK automatic edge banding machine, up to 24m/min. This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, double rail end cutting, horizontal double trimming, trace trimming, side hole machine, one machine two processes, so that production efficiency is more efficient.

Technical Parameter

Model:	KE-668JS
narrow panel seal long side	45mm, open tracking 45mm
narrow pane seal short side	45mm,open tracking 45mm
Total power	33kw
Overall size	950011001750mm
Feeding speed	22-28m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	Close pre-milling ≥45mm, open pre-mimlling ≥65mm
Panel width	≥45mm
Working pressure	0.7Mpa
Vacuum port	Φ100

Solution Technology

Main function:Separating agent→Pre-milling→Sol R1→Gluing R1→Sol R2→Gluing R2→End cutting→Rough trimming→Fine trimming→Trace trimming→Lateral pore→Scraping→Flat scraping→Buffing 1→Buffing 2.

Applicable Industry

KE-668JS-CK Edge Banding Side Hole Integrated Machine has stable operation, strong stability, high cost performance, and is popular in large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers. The machine is fully automatic operation, computer control, not only to achieve high efficiency, high precision production, but also the edge banding effect of the board is beautiful.

Our Advantages

1. The steel frame body is firm and does not deform, and the stability is strong, ensuring that each processing group can work accurately.

2. Independent lifting system, can adjust the size of the board.

3. Pneumatic clamping rod, more convenient operation when the edge thickness changes.

4. Each process is equipped with a dust suction port to absorb dust and waste materials.

5. Strict and careful assembly process to ensure that each device gets its perfect performance

6. Edge banding machine edge effect is exquisite, smooth.

7. The equipment is stable, durable, efficient, cost-effective, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers.

Applicable

Full-automatic edge banding machine is suitable for the edge banding processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

1.What is the positioning of KE-688JS-CK?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
2.What is the function of KE-688JS-CK?

Main function:Separating agent→Pre-milling→Sol R1→Gluing R1→Sol R2→Gluing R2→End cutting→Rough trimming→Fine trimming→Trace trimming→Lateral pore→Scraping→Flat scraping→Buffing 1→Buffing 2.
3.The difference between KE-688JS-CK and KE-688JS?

Ke-688js-ck model edge banding machine than KE-688JS model edge banding machine more than a set of side hole function, less a set of horizontal scraping.
