KE-648JK Aluminum Honeycomb Special Edge Banding Machine

5 0 Reviews

Price: $ 24900 / SET

Model:
KE-648JK
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Description

Application

FAQ

Pre-milling

The edge of the panel is cut, milling, the edge of the panel is trimmed flat, and the burrs are removed, so that the side tape can be better fitted to the panel.

Glue pot 1

Fast heating, selected glued bearings, which can effectively and evenly glue the panels,make the edge bands can be bonded tightly without gaps.

Pressing

Multi-point contact and tight paste, make the sealing tape and the panel more strongly fit.

End cutting

After the sealing tape is glued to the board, the guide rail will cut off the excess sealing tape at both ends of the board.The single guide rail is designed to 45°, which is more conducive to accurate positioning and faster and more efficient work.A suction port and a baffle plate are added above the head of the guide rail to facilitate the suction of the waste sealing side band garbage.

Trimming

Through rough trimming and fine trimming panel on both sides of the excess edge band tape, so that it is parallel to the height of the panel, make the edge effect is more exquisite, feel better.

Corner rounding

The tracking contour will round the edge of the four corners of the panel, so that the edge after the four corners is more delicate, smooth and beautiful, and can also prevent the sharp corners of the finished furniture from causing damage to the human body.

Scraping

The edge scraping process can scrape off the excess sealing tape on both sides of the panel, so that the sealing tape is flush with the height of the board, so that it looks more beautiful and feels more comfortable.

Horizontal scraping

The top and bottom scraping are independently controlled, the sliding block feeding mode, can effectively avoid skipping in the scraping edge.

Cleaning

After the board edge sealing is completed, the cleaning process will spray cleaning agent to clean the dirt and residual glue on both sides of the panel, so that the panel can reduce the subsequent cleaning process.

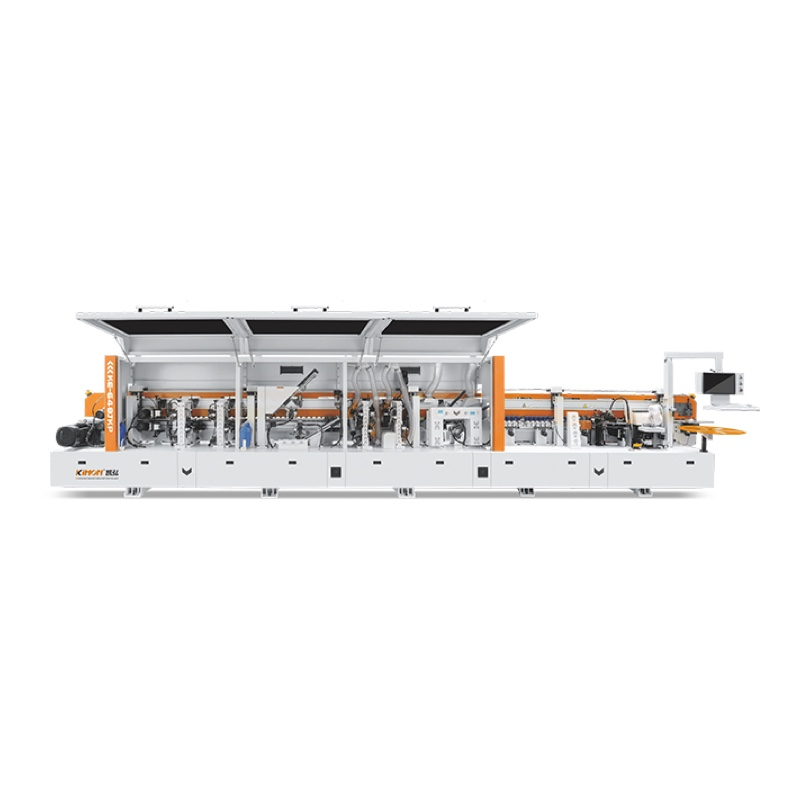

Aluminum Honeycomb Special Edge Banding Machine KE-648JK

KE-648JK aluminum honeycomb special edge banding machine, up to 26m/min. This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, standard PUR no-cleaning monochrome glue pot, high-speed double finishing tracking copy double scraping double polishing, edge sealing effect is more good, suitable for honeycomb aluminum furniture high-end mass customized production. With high-quality materials and brand configuration, it can adapt to high and low temperature climate and other harsh environments for production and operation, with stable production, less maintenance, durability and other characteristics.

Technical Parameter

Model:	KE-648JK
Total power	26.5kw
Overall size	950011001750mm
Feeding speed	26m/min
Tape thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	≥120mm
Panel width	≥60mm
Working pressure	0.7Mpa

Solution Technology

Separating agent → Pre-milling → Buffing → PUR no-clean glue pot → 18 pressing → High speed end cutting → Fine trimming 1 → Fine trimming 2 → Pneumatic vertical tracking → Flat scraping → Scraping 1 →Scraping 2 → Cleaning → Buffing 1 → Buffing 2.

Applicable Industry

KE-668JS-CK edge sealing machine has the characteristics of stable performance, reliable performance and cost-effective, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other panel furniture manufacturers. Because of its high degree of automation, high efficiency, high precision, beautiful and generous, it has been widely used in China's panel furniture manufacturers.

Our Advantages

1. Suitable for high-end mass customized production of honeycomb aluminum furniture.

2. The machine is easy to operate, the computer system is simple touch design, simple training can be started to operate.

3. Adapt to harsh environment production, durable

4. With automation, high efficiency, high precision, beautiful and other characteristics, has been widely used in China panel furniture manufacturers.

Applicable

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.

FAQ

What is the positioning of KE-648JKP?

High-end Narrow panel edge banding machine,suitable for medium and large manufacturers.
What is the function of KE-648JKP?

Main functions: Separating agent → Pre-milling → Buffing → PUR no-clean glue pot → 18 pressing → High speed end cutting → Fine trimming 1 → Fine trimming 2 → Pneumatic vertical tracking → Flat scraping → Scraping 1 →Scraping 2 → Cleaning → Buffing 1 → Buffing 2.
KE-648JKP Edge banding machine Scope of application:

Full-automatic edge banding machine is suitable for the edge sealing processing of medium density fiberboard, joinery board, solid wood board, particle board, polymer door board, plywood and other boards.
