Unique wiring mode, can be more stable when the spindle moves, the wire is not easy to fall off.

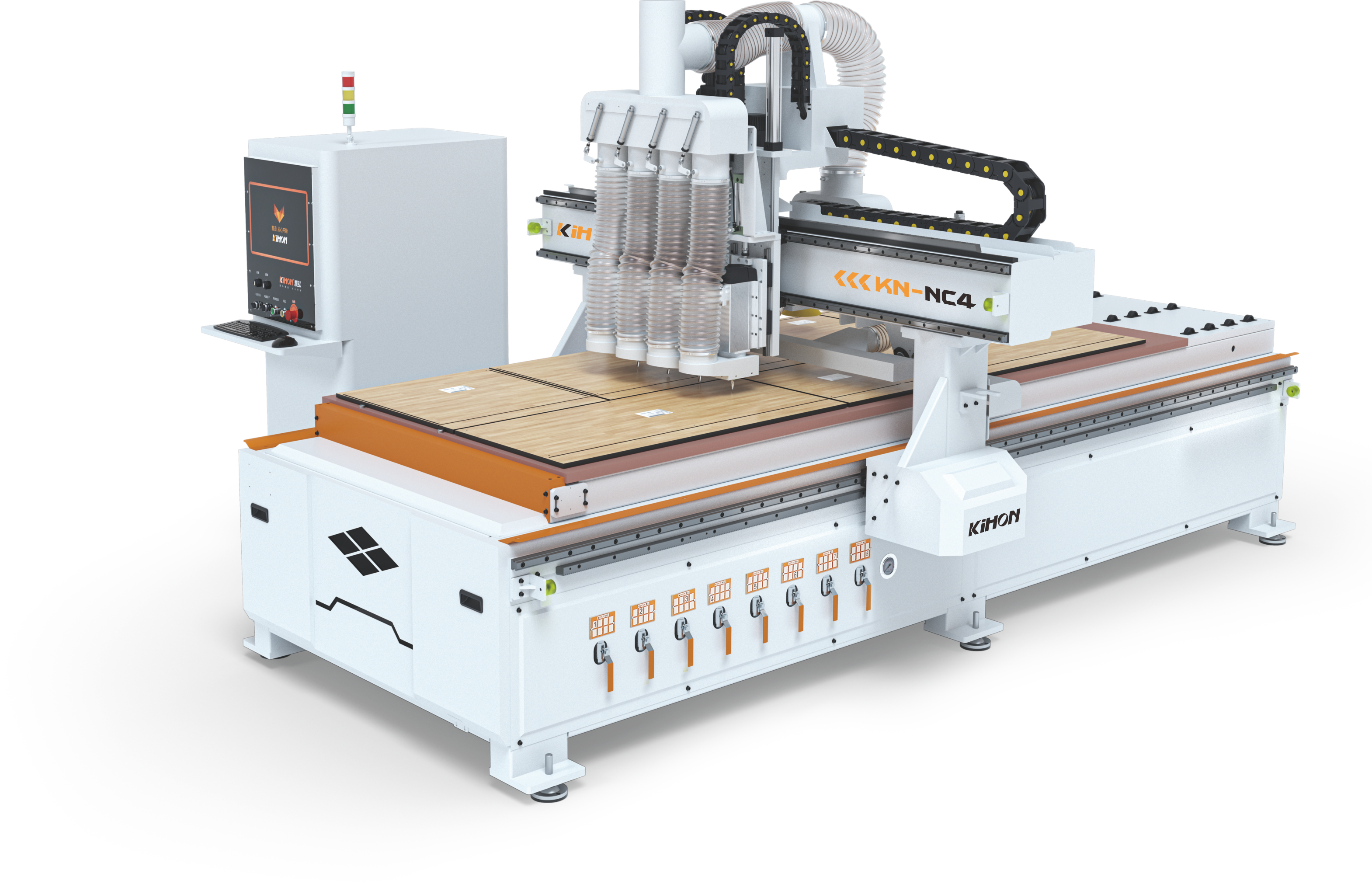

KN-NC4 CNC Four-process Cutting Machine
KN-NC4 CNC 4 process cutting machine is CNC drilling, slotting, cutting functions in one of the processing equipment, 6*4kw air-cooled spindle motor is equipped with a tool holder, 4 process CNC cutting machine can solve the plate furniture production, can also solve the door engraving process, Can be customized according to customer needs model configuration.
Technical parameter
Model: | KN-NC4 |
Processing range | 2750*1220*50mm |
Spindle power | 6KW*4 |
Spindle rotation speed | 18000r/min |
Move quickly | 70m/min |
Max.working speed | 18m/min |
Vacuum port | φ150mm*1+φ100mm*1 |
Overall size | 8780*2300*2300mm |
Solution Technology
Vertical drilling, grooving, profile cutting, engraving, milling, hollowing out.
Applicable Industry
Customized cabinet, wardrobe, wine case, tatami mat, shoe cabinet, antique frame, bookshelf, computer desk, partition, nightstand, plastic door panel, spray painted door panel, molded door panel, flat relief, screen, hollow partition, crafts and so on.
Our Advantages
1. KN-NC4 CNC milling machine computer control, simple training can be operated
2. Multi-axis automatic switch, save time, only one time to set the origin, avoid knife marks.
3. High-performance drive motor to ensure high speed and accuracy of the machine.
4. Breakpoint special memory, with power failure to maintain the working state, unexpected power failure processing time prediction and other functions.
5. CNC planer body is strong, high precision, reliable and durable.1.
Applicable
Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, wheat straw board, solid board, PVC board, aluminum nest bee board, etc.
 |  |
