Automatic pushing device,equipped with brush, can be used to clean the table while pushing the material.

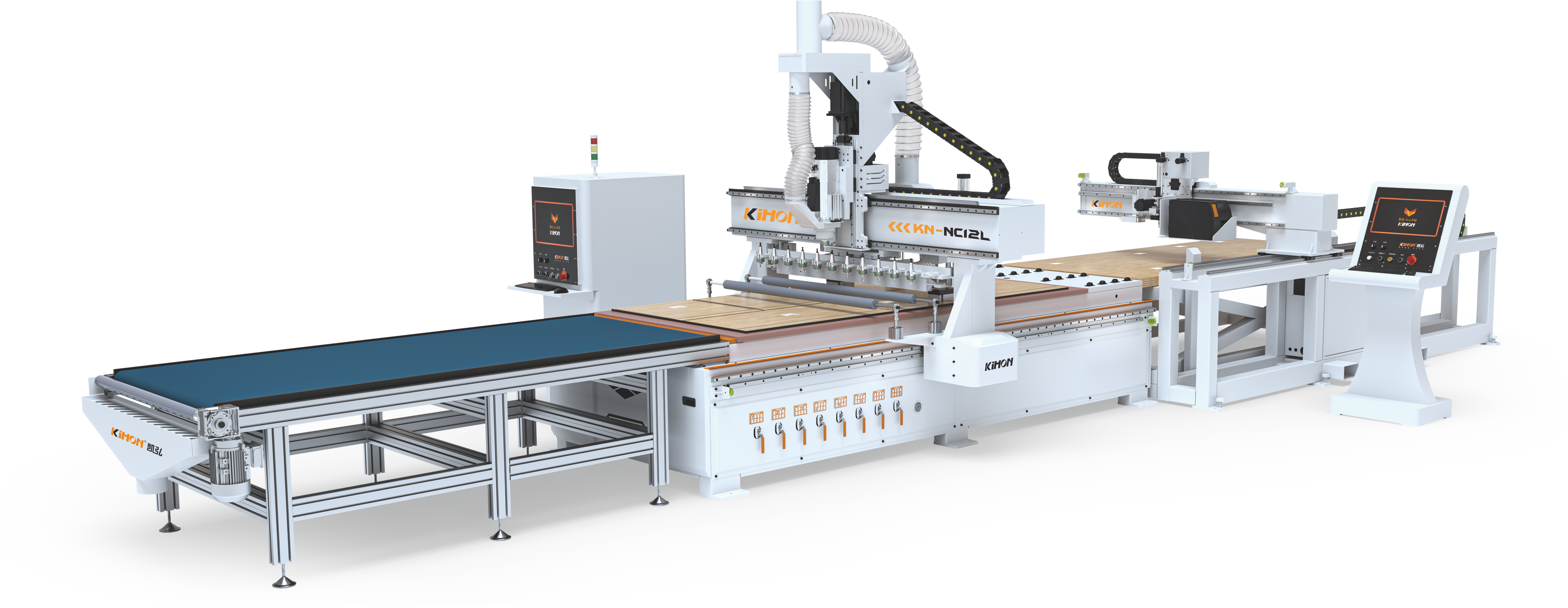

KN-NC12L CNC Linear Machining Center
KN-NC12L CNC linear type tool change cutting machine production line is an in-line tool changing system,cutting drilling milling type integrated processing equipment. At the same time can be completed autonomously, marking, labeling, automatic processing, automatic loading and unloading. The 9kw air-cooled spindle motor is equipped with a tool holder, which can be equipped with 12 tool heads. The tool can be changed automatically according to the production needs. The production procedure is completed quickly and continuously, saving the time and labor of changing the tool in the production process. Also according to their own needs to choose vacuum pump, automatic loading and unloading platform, press roller, automatic gripper materials and other accessories.
Technical parameter
Model: | KN-NC12 |
Processing range(X*Y*H) | 2750*1220*50mm |
Spindle power | 9KW |
Spindle rotation speed | 21000r/min |
Move quickly | 70m/min |
Max.working speed | 18m/min |
Vacuum port | φ150mm*1+φ100mm*1 |
Frame configuratio | Whole steel structure+tempering+CNC processing |
System | LNC system |
Beam configuration | Whole steel structure+tempering+CNC processing |
| Total power | 23.75kw |
Overall size | 8780*2300*2300mm |
Solution Technology
Vertical drilling,slotting,special-shaped cutting,engraving,milling,hollow out.
Applicable Industry
Customized cabinet, wardrobe, wine case, tatami mat, shoe cabinet, antique frame, bookshelf, computer desk, partition, nightstand, plastic door panel, spray painted door panel, molded door panel, flat relief, screen, hollow partition, crafts and so on.
Our Advantages
1.High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.
2.The imported rack and pinion drive is used to make the equipment work with high precision, and the super-power vacuum pump is used to facilitate operations such as loading and unloading and fixing workpieces.
3.Featuring high frequency air-cooling electronic spindle and world-class servo motor and driving system.
Applicable
Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, wheat straw board, solid board, PVC board, aluminum nest bee board, etc.
