KN-NC12 CNC Cutting Machine

5 0 Reviews

Price: $ 10100 / SET

Model:
KN-NC12
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Linear type tool magazine with 12 tools, one tool for one craft, automatic tool change without waiting.

Adopt HQD high speed spindle,the highest rotation speed can be reached 24000rmin

Automatic pushing device,equipped with brush, can be used to clean the table while pushing the material

Automatic tool setting device, can accurately set the tool, can make the tool more simple and convenient，automatic tool sensors will help measure Z-axis height distance.

Hight precision helical gear transmission

Unique wire storage mode, stable wire is not easy to fall off when the machine is moving.

Description

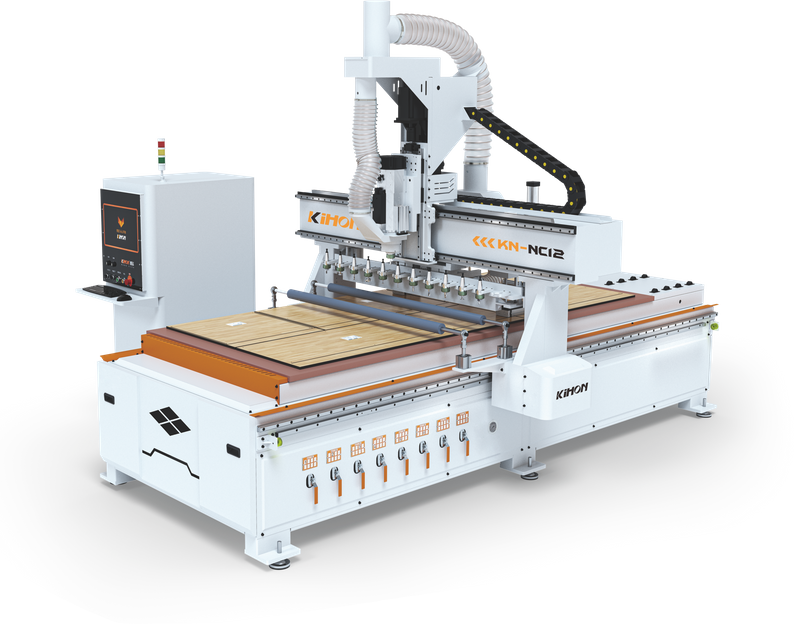

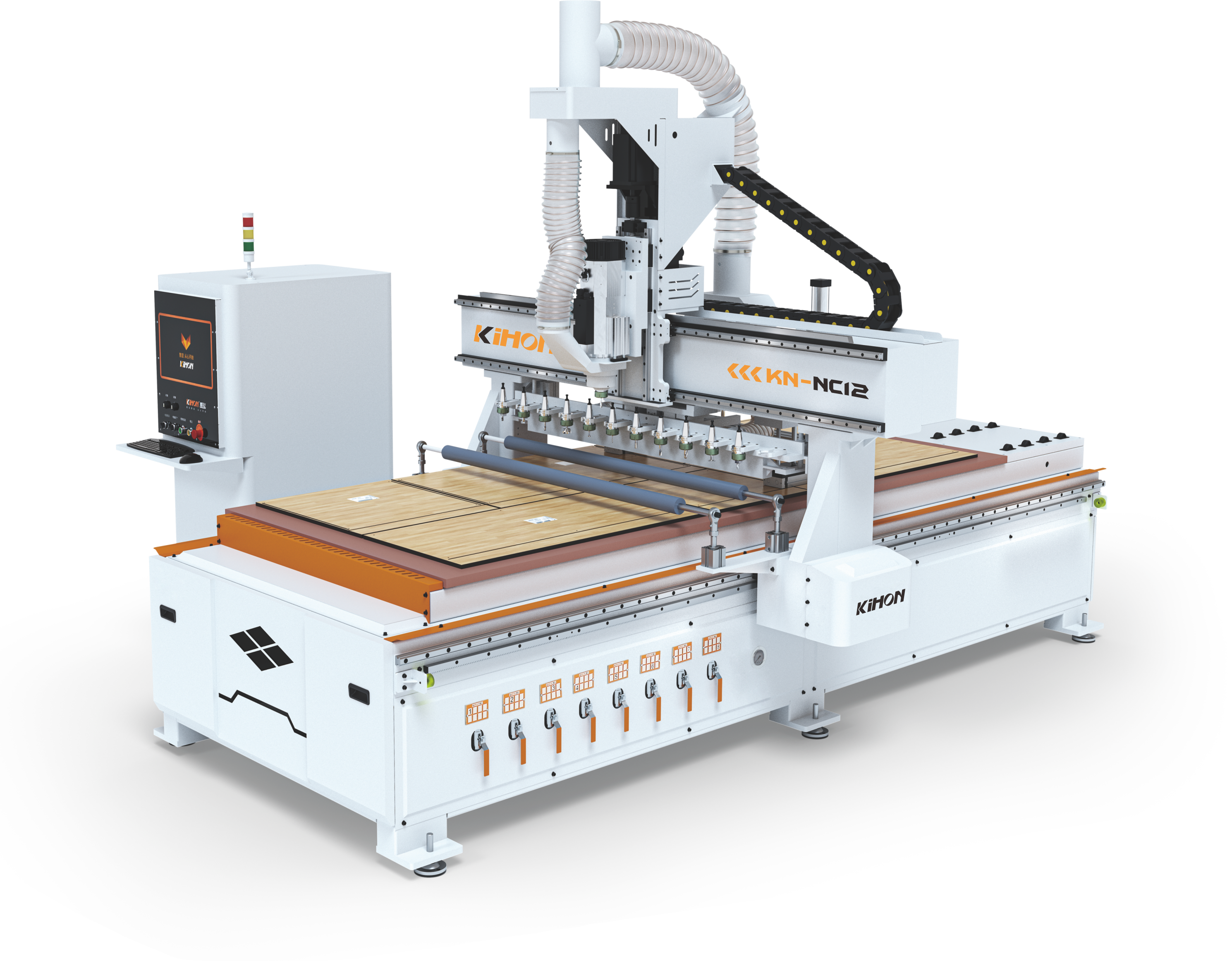

CNC Router Machine KN-NC12

KN-NC12 cutting machine is a linear tool changing system, with cutting, drilling, milling, engraving, hollow and other functions, 9kw air-cooled spindle motor with tool holder, can be equipped with 12 tool heads, the tool can be automatically replaced according to production needs.

Technical Parameter

Model:	KN-NC12
Processing range	2740122050mm
Spindle power	9KW
Spindle rotation speed	24000r/min
Move quickly	70m/min
Max.working speed	18m/min
Vacuum port	φ150mm1+φ100mm1
Overall size	390023002300mm
Frame configuration	Whole steel structure+tempering+CNC processin
Beam configuration	Whole steel structure+tempering+CNC processin
System	LNC system

Solution Technology

Vertical drilling,slotting,special-shaped cutting,milling,hollow out.

Applicable Industry

Custom cabinetry, wardrobe, shoe cabinet, computer desk, bedside table, door panel, flat relief, screen, crafts and so on.

Our Advantages

1. High-performance all-round machinery with extraordinary value, but at a very economical price.

2. Equipped with double working platform, it can realize automatic loading and unloading, saving time and improving efficiency.

3. Manufactured with linear tool magazine with 12 tools, it can realize automatic tool change according to customer needs.

4. With complete function, it can realize the whole board cutting processing and whole board perforation processing.

5. All the parameters can be customized according to your processing requirements.

Application

Applicable

Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, wheat straw board, solid board, PVC board, aluminum nest bee board, etc.

FAQ

FAQ

1.Can the CNC cutting machine be customized?

Our standard working size is 2750*1220*50mm, if you need a larger work surface, we can customize.
2.What's the advantages of CNC nesting machine?

Various special-shaped cutting，High plate utilization rate, more material saving，Reduce dependence on labor。
