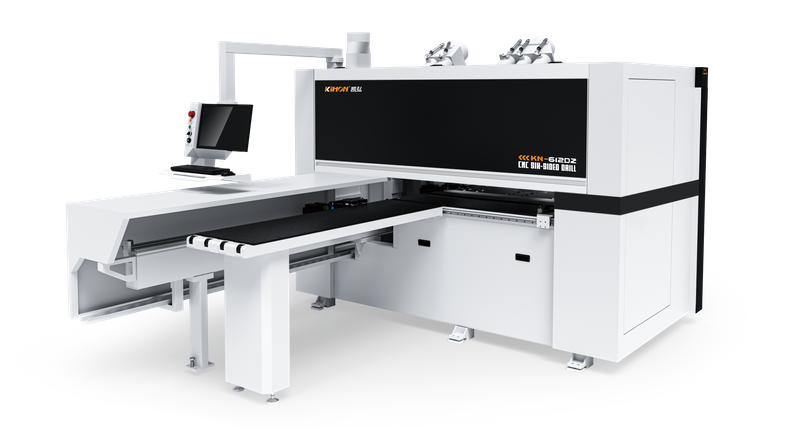

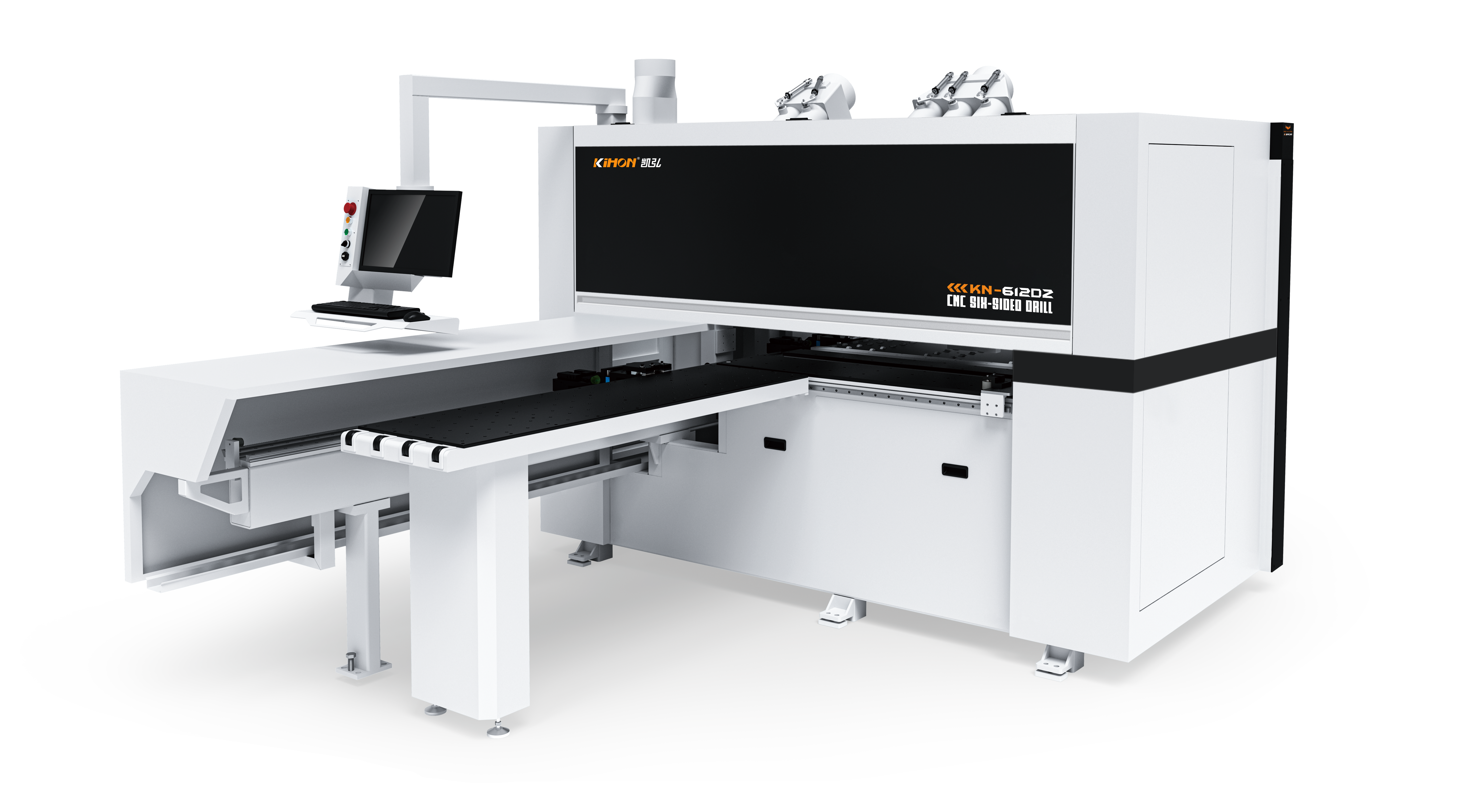

KN-612DZ Six Sided CNC Drilling Machine

5 0 Reviews

Price: $ 34000 / SET

Model:
KN-612DZ
Brand:
KIHON

Availability:

Quantity:



Buy Now Add to Cart

Features

Intelligent gripper

Pneumatic gripper, clamping stability, more accurate hole positioning, intelligent control, intelligent avoid drilling frame, reduce the failure rate.

Anti-scratch side

With rubber wheel side leaning device, the side positioning of the panel is more accurate, and it is not easy to damage the workpiece after edge banding.

Drilling box

Adopt Taiwan Portean precise anti-seismic drilling box and high-quality drilling group.It can effectively ensure the stability of equipment operation and the processing accuracy of equipment.

Screw drive

The uniform screw drive of the upper and lower drilling groups of the equipment can ensure the accuracy of the equipment is more accurate.

Tool magazine

Six tool magazines to meet different processing techniques, according to their own processing needs, equipped with different types of tools.

Photoelectric sensor panel size

Photoelectric sensor, accurately identify the size of the panel, stop the machine in time with the wrong board size, avoid unnecessary waste and avoid machine failure.

Double lower spindle

The lower machining spindle is equipped with dual-spindle machining. Can be equipped with 6-10 slotting cutters, or slotting cutters of different knife types, for flexible processing.

Frame

Standard welding process, five-axis machining table precision, annealing treatment of the fuselage.

24 horizontal bits +12 vertical bits +9 bottom bits+six tool magazines automatic tool change

Description

Six Sided Cnc Drilling Machine-KN-612DZ

KN-612DZ full-function heavy-duty six-sided drill has the advantages of high processing efficiency and high degree of automation, six tool library automatic tool change, easy to solve the plate side processing problems, through the perfect connection with a variety of design and nesting software, scanning code processing, automatic positioning, automatic loading processing, to achieve stable, reliable and efficient drilling, groove and milling processing.

Technical Parameter

KN-612DZ
X axis positioning fastest speed	130m	Upper/Lower spindle speed	24000/18000x2
Y axis positioning fastest speed	80m	Min.panel width(X+/-horizontal	45mm
Z axis positioning fastest speed	30m	Max.panel width(horizontal)	1200mm
U axis positioning fastest speed	130m	Min.panel length(X+/horizontal)	400mm
V axis positioning fastest speed	80m	Max.panel length(horizontal)	3300mm
W axis positioning fastest speed	30m	Max.panel thickness(horizontal)	40mm
A axis positioning fastest speed	30m	Y Min.horizontal*2	210
Y2 axis positioning fastest speed	80m	X Min.horizontal*2	225
Z2 axis positioning fastest speed	30m	Y Min.vertical*2	64
Upper vertical drill spindle quantity	24	Working pressure	0.7-0.8
Lower vertical drill spindle quantity	9	Total power	34kw
Upper horizontal drill spindle quantity	12	Overall size	6240x2930x2350
Drill power&rotataion speed	2.2kw/3400rpm

Solve The Process

Mainly used for six sides of various wood-based panels(Hinge hole, through hole, half through hole),horizontal slotting,side light lines, slotted special-shaped parts, etc.

Suitable Industrya

The six-sided wood drilling machine are widely used in the production of wooden furniture, such as cabinets, doors, Customized cabinet, wardrobe, wine case, tatami mat, shoe cabinet, antique frame, bookshelf, computer desk,office furniture, etc.

Our Advantages

1.Precision drilling head ball screw drive, precision guide rail, scan barcode processing,Max. processing width1200mm;

2.Heavy duty machine body, 6 sides drilling and 2 sides milling, double sides grooving, Six tool magazines automatic tool change,easy to solve the plate side processing problems.

3.double clamps continuous through type feeding, side discharge table, Double clamps continuous through type feeding, side discharge table, high-efficiency processing.

4.Compatible with Multiple Data Formats Six sides drilling and milling double gripper continuous through type high-efficiency processing.

Application

Applicable

Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, wheat straw board, solid board, PVC board, aluminum nest bee board, etc.

FAQ

FAQ

1.How large container need for this machine?

20ft container
2.Can this machine read dxf file?

Yes, can compate with dxf,xml,ban, mpr etc multiple format files.
3.How long this machine warranty time?

Our machine warranty time is 12 months
