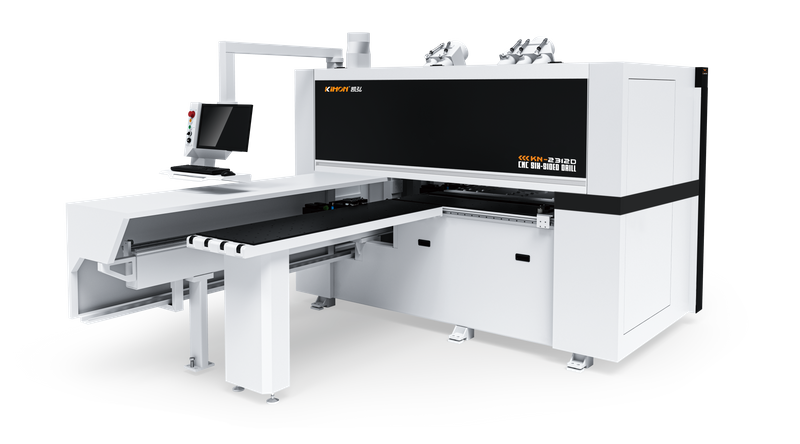

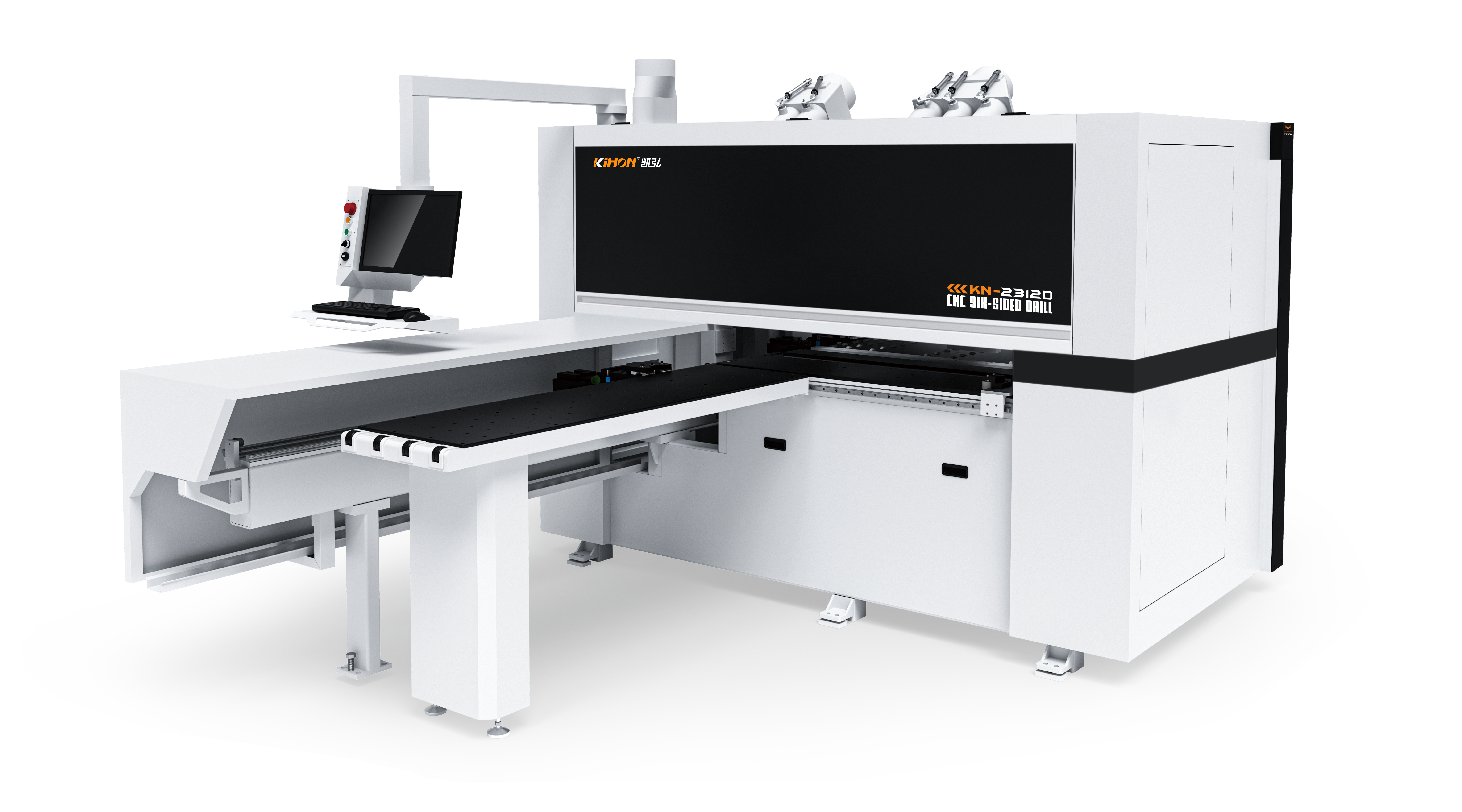

KN-2312D Six Sided CNC Drilling Machine
KN-2312D Six Sided CNC Drilling Machine KN-2312D Six Sided CNC Drilling Machine
KN-2312D Six Sided CNC Drilling Machine KN-2312D Six Sided CNC Drilling Machine

loading

KN-2312D Six Sided CNC Drilling Machine

5 0 Reviews
Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Price: $ 26700 / SET

  • KN-2312D

  • KIHON

Availability:
Quantity:

Features
Intelligent gripper
Pneumatic gripper, stable clamping, more accurate hole position, intelligent avoid drilling box travel, reduce the failure rate.Pneumatic gripper, stable clamping panel, flexible positioning, accurate positioning of the hole, intelligent identification, avoid misdrilling into the frame, reduce the failure rate.
Anti-scratch side
With rubber wheel side leaning device, the side positioning of the panel is more accurate, and it is not easy to damage the workpiece after edge banding.



Drilling box
Adopt Taiwan Portean precise anti-seismic drilling box and high-quality drilling group.It can effectively ensure the stability of equipment operation and the processing accuracy of equipment.



Double lower spindle
The lower machining spindle is equipped with two-axis machining. It can be equipped with 6-10 slotting knives, and different slotting knives can also be adapted. The drill knife can rotate at high speed, and the panel can be processed flexibly under the spindle control.
Helical rack drive
The spiral rack drive makes the connection between the drill box and the rack more closely, which can make the processing speed faster and the double drill bag efficient processing.


Processing spindle
The upper and lower machining shafts are the main shafts for cutting and grooving the panels.




Description


Six Sided Cnc Drilling Machine-KN-2312D

The six-sided drilling has a perfect connection with a variety of design and nesting software, scanning code processing.Developed system interface design, better docking and nesting software, flexible production.Manually edit the hole position in the office, and scan code processing can be realized without nesting software.It has been carefully built for many years to achieve stable, reliable and efficient drilling, slotting and milling processing.



Technical Parameter

Model:

KN-2312D

Max.panel size

2800X1200mm

Upper horizontal drill spindle quantity

Left 1、right 1、front 1、back 1

Processing thickness

10-35mm

Lower vertical drill spindle quantity

4

Min.panel size

200x45mm

Upper spindle

1

Max.processing speed

60m/mim

Lower spindle

1

Movement axis

9

Spindle form

Slotting+round milling+shape milling

Processing sides

6

Tool diameter

4-35mm(Tool optional)

Drill box quantity

Top 2、bottom 1

Spindle power&rotation speed

2.2kw&4500rpm

Upper vertical drill spindle quantity

7*2

Total power

24kw

Working pressure

0.7-0.8Mpa

U axis positioning fastest speed

115m/min

X axis positioning fastest speed

115m/min

V axis positioning fastest speed

80m/min

Y axis positioning fastest speed

80m/min

W axis positioning fastest speed

24m/min

Z axis positioning fastest speed

24m/min

Overall size(L*W*H)

5200X2850X2100mm

A axis positioning fastest speed

30m/min

Total weight

4.5T



Solve The Process

Mainly used for six sides of various wood-based panels(Hinge hole, through hole, half through hole),horizontal slotting,side light lines, slotted special-shaped parts, etc.



Suitable Industry

Suitable for custom cabinets, wardrobes, wine cabinets, tatami MATS, shoe cabinets, antique frames, bookshelves and other panel furniture manufacturers to meet all kinds of furniture production needs.



Our Advantages

1.  he use of dual drives greatly improves the speed of slotting and punching, and correspondingly improves production efficiency .

2.  The use of high-end air floating table, so that the processing accuracy is more accurate.

3.  Precision drill rack transmission control, precision guide rail, a complete six-sided processing, scanning bar code processing, the maximum processing width of 1200mm.

4.  Heavy fuselage, 6 drilling 2 milling, double slotting, heavy fuselage, double drilling package efficient processing.



Application


Applicable

Particle board, fiber board, multi-layer board, ecological board, oak board, finger joint board, wheat straw board, solid board, PVC board, aluminum nest bee board, etc.


IMG_0045 IMG_0031




FAQ
FAQ
  • 1.What products is this machine mainly suitable for processing?
    加 Created with Sketch.
    形状 Created with Sketch.
    Customized cabinet, wardrobe, wine case, tatami mat, shoe cabinet, antique frame, bookshelf, computer desk, partition, nightstand, plastic door panel, spray painted door panel, molded door panel, flat relief, screen, hollow partition, crafts and so on.
  • 2.How to setting drilling hole position?
    加 Created with Sketch.
    形状 Created with Sketch.
    This machine with CNC control system, input drilling hole position to CAM software setting or use scanner scan QR code loading
    processing files.
  • 3.What format files this machine can compatible?
    加 Created with Sketch.
    形状 Created with Sketch.
    Compatible with Multiple Data Formats,MPR,DXFBAN,XML etc.
